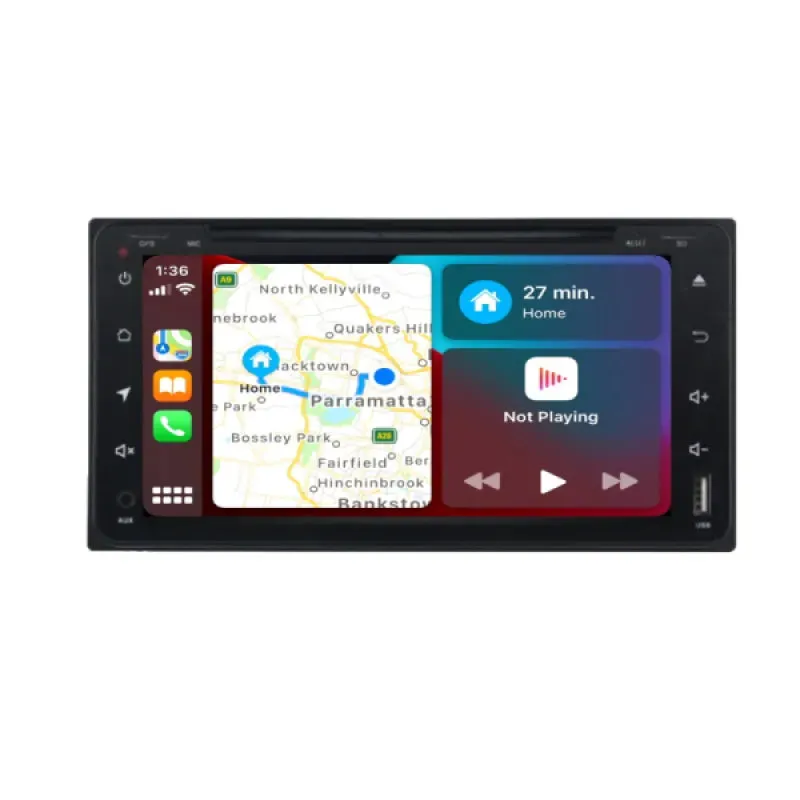

7-Inch Toyota Luxx Head Unit Suitable Various Toyota Vehicles with 200mm Wide Radio by Polaris
The ToyotaLuxx is the perfect head unit upgrade for your Toyota head unit! With a sleek 7-inch screen and all the essential features, it delivers unbeatable value for your investment.
Stay on course with real-time navigation through wireless Apple Carplay and Android Auto. You can easily download your favorite apps directly onto the head unit, unlocking endless possibilities for your adventures. Plus, the included reverse camera makes it easier than ever to keep an eye on what's behind you, ensuring safe and confident driving wherever the road takes you.
Key Features
- Toyota Double din (200mm) head unit with a 7″ capacitive touch screen
- Wireless Carplay/Android Auto Built-in
- Bluetooth
- Reverse Camera included
- AM/FM radio
- CD/DVD player
- 3 x USB inputs
- Built-in WiFi
- Download additional apps via the play store
- Second camera input
- Android 10 operating system
- Screen resolution: 800×480
- Steering wheel control programming
- Extra fascias available for selected Toyotas
- Loads of optional extras!
Compatible Vehicles:
- Avensis Verso 2000 – 2009
- Camry 2002 – 2006
- C-HR 2016 – 2018
- Corolla 2002–2011
- Corolla Hatch 2012 – 2015
- FJ Cruiser 2007 – 2015
- Fortuner 2015 – 2020 (Fascia Required, contact Polaris)
- Hiace 2004 – 2011
- Hiace 2012 – 2018
- Hilux 2005 – 2011
- Hilux 2012 – 2013
- Hilux 2014 (Fascia Required: FP8230)
- Hilux 2015 – early 2020 (fascia required, or check out our Hilux Maxx)
- Kluger 2003 – 2006 (excludes Grande)
- Kluger 2007 – 2013 (excludes Grande)
- Kluger 2014 > (fascia required, contact Polaris)
- Landcruiser 79 Series late 2009 and onwards (or check out our 70Maxx)
- Landcruiser 100 series 2002 and onwards (if your model is 2002, please check with Polaris)
- Landcruiser 200 series 2007 – 2011 (some of the higher-end models with the big screen will not be suitable)
- Landcruiser 200 Series 2012 > (some of the higher-end models with the big screen will not be suitable)
- Prado 120 series 2003 – 2009
- Prado 150 Series GX 2009 – 2013
- Prado 150 series (GXL) – 2009 – 2013 (fascia required: FP9166 )
- Prado 150 Series (GXL) 2014 – 2017( fascia required or check out our Prado14 Maxx)
- Prius C 2009 >
- Rav4 2001 – 2018 (excludes integrated head unit)
- Rukus (Rumion) 2010 – 2015
- Tarago (Estima) 2011>
- Tundra 2007 – 2013
- Yaris (Vitz) 2005 – 2011
- Yaris 2011 – 2013
Don’t see your Toyota listed? Reach out and we will see if there is a solution.
Vehicle Compatibility Reference
Mitsubishi
-

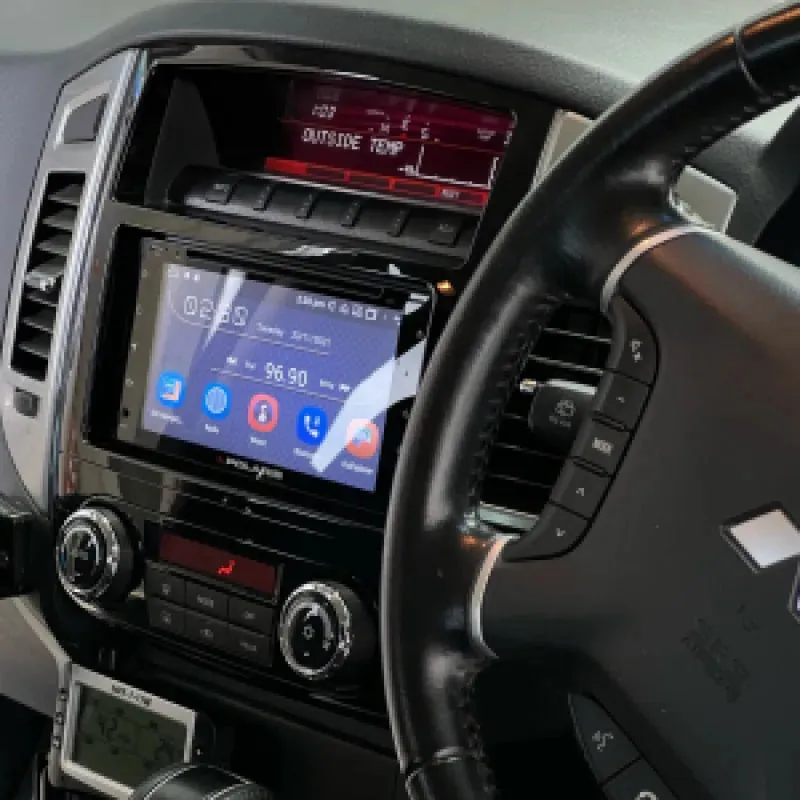

Mitsubishi Pajero 2012-2019
Toyota Corolla
- Toyota Corolla 2002-2007
- Toyota Corolla 2012-2015 Hatch
Toyota FJ Cruiser
- Toyota FJ Cruiser 2011-2015
Toyota Kluger
- Toyota Kluger 2014-2019
Toyota Landcruiser
- Toyota Landcruiser 79 series 2010-2023
- Toyota Landcruiser 100 series 2002-2006
- Toyota Landcruiser 200 series 2012 - 2023 (GX, GXL only)
Toyota Prado
- Toyota Prado 120 series 2003-2009
- Toyota Prado 150 series 2009-2014 GXL
Specification
| Weight | 2.6 kg |
|---|---|
| Android OS |
10 |
| Rockchip |
PX5 |
| Monitor |
7" capacitive multi touch screen |
| Power Supply |
12 Volt DC |
| Wiring |
Vehicle specific harness |
| Steering wheel controls |
Supports – need to manually program in steering wheel controls |
| Video Form |
NTSC, PAL |
| Resolution |
800×480 |
| Multi camera support |
2 camera input, Can upgrade to 3 cameras with control box |
| CPU |
64 Bit, Cortex-A53, Octa Core |
| RAM |
4GB |
| Flash |
64GB |
| GPS Module |
SIRF III |
| Amplifier IC |
TDA 7851 |
| Bluetooth |
WQ_RF210 |
| Video Decoder |
1080P HW |
| Screen |
Hanstar screen |
| GPS Freq |
16GHz |
| Street Mapping |
*Optional: Tom Tom powered by iGo, Navigation can be used through Carplay / Android Auto, Other mapping apps can be installed onto head unit (may require internet connectivity) |
| Off Road Mapping |
Download your favourite off-road navigation from the Google Play store |
| AM |
522KHz-1620KHz, Can set up to 30 presets |
| FM |
76.0 MHz-108.0 MHz, Can set up to 30 presets |
| USB |
1 USB port in the front of unit, 2 cabled USBs, Support up to 64GB |
| Supports Ipod |
No |
| Supports iPhone |
For Carplay, For charging |
| Supports Android phone |
For Android Auto, For charging |
| File formats |
MP3/WMA/AAC/RM/FLAC/MPEG-1,2,4/H264/H263/VC1/RV/RMVB/DivX/JPEG/BMP/GIF/PNG |
| Reverse camera included |
Yes |
| Reverse camera input |
Yellow RCA jack |
| Reverse trigger |
Yes |
| Retains factory camera |
No, will require separate Aerpro harness if available for your vehicle |
| Reverse camera functionality |
Camera will appear on screen when reverse is engaged. Can also view reverse camera via CAM app on head unit (provided that it is wired up correctly) |
| Front camera included |
No |
| Front camera input |
Yellow RCA jack |
| Front camera functionality |
Can also switch over to the camera when in reverse by pressing the return button on screen, Can be accessed via CAM app, Can be used as a second camera input (e.g., Caravan camera) |
| Carplay / Android Auto |
Compatible, Wired connection, Wireless connection |
| Bluetooth functionality |
Compatible with BT2.0 for most brand phones, External microphone included, Import phone book, Stream audio via bluetooth |
| Audio Max Power |
Built in 4×50 with internal amplifier |
| AUX audio Input |
Yes L & R |
| Aux audio output |
RL out, FL out, RR out, FR out |
| Subwoofer out |
Yes |
| EQ |
10 band equaliser |
| Sound effects |
Pop, classical, rock, flat, jazz, custom, voice |
| DIN size |
Double DIN |
| Screen style |
Sits flush with the dash |
FAQ
Frequently Asked Questions
How will this fit into my vehicle?
- The Polaris Toyota Luxx is designed to fit into most Toyota models with a 200mm Wide radio.
- The Toyota Luxx has a 7″ screen and sits flush in the dash.
- Some Toyota vehicle may require an extra fascia, please see Question: What Toyota Vehicles does it fit?
What Toyota vehicles does it fit?
- Avensis Verso 2000 – 2009
- Camry 2002 – 2006
- C-HR 2016 – 2018
- Corolla 2002–2011
- Corolla Hatch 2012 – 2015
- FJ Cruiser 2007 – 2015
- Fortuner 2015 – 2020 (Fascia Required, contact Polaris)
- Hiace 2004 – 2011
- Hiace 2012 – 2018
- Hilux 2005 – 2011
- Hilux 2012 – 2013
- Hilux 2014 Fascia Required: FP8230)
- Hilux 2015 – early 2020 (fascia required, or check out our Hilux Maxx)
- Kluger 2003 – 2006 (excludes Grande)
- Kluger 2007 – 2013 (excludes Grande)
- Kluger 2014 > (fascia required, contact Polaris)
- Landcruiser 79 Series late 2009 and onwards (or check out our 70Maxx)<
