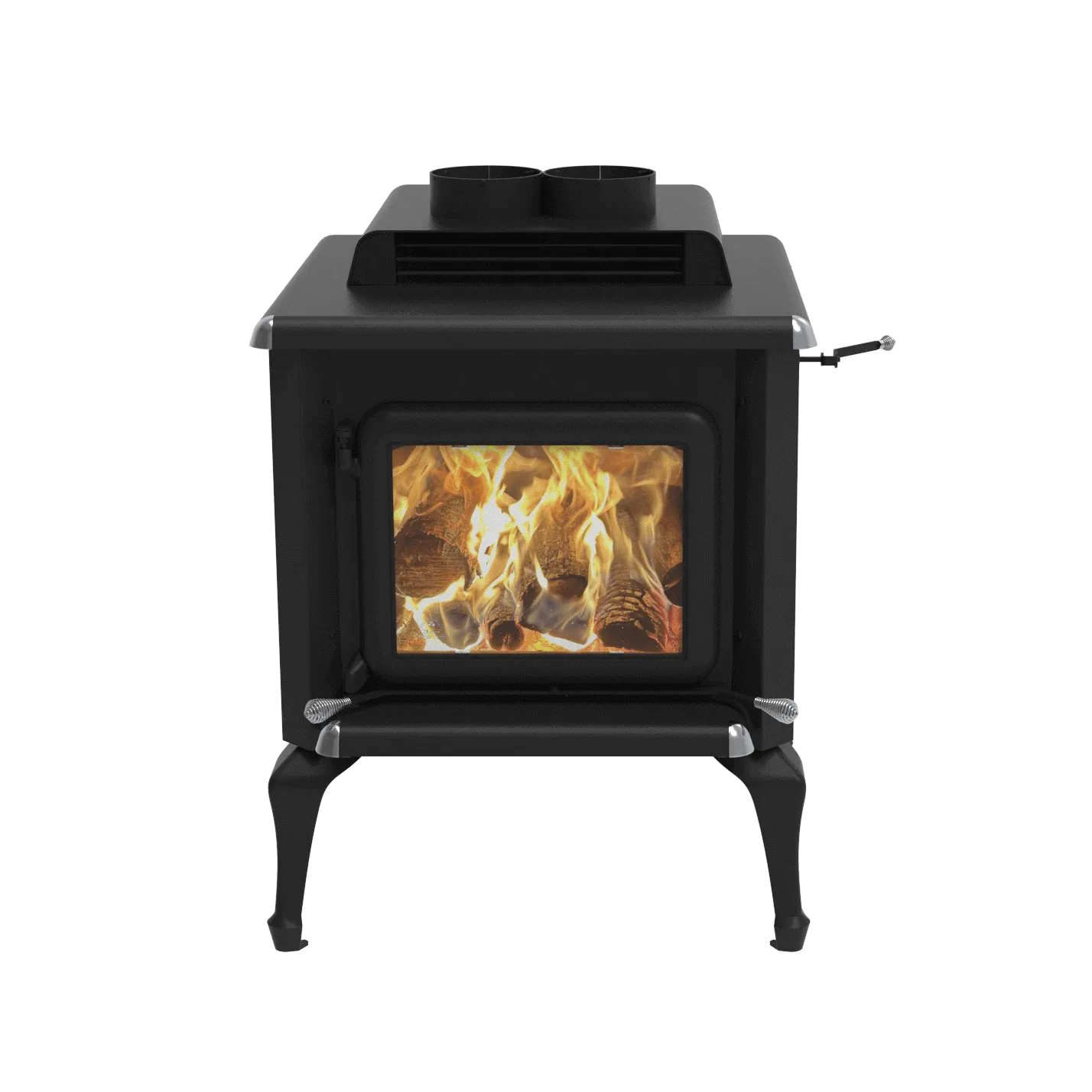

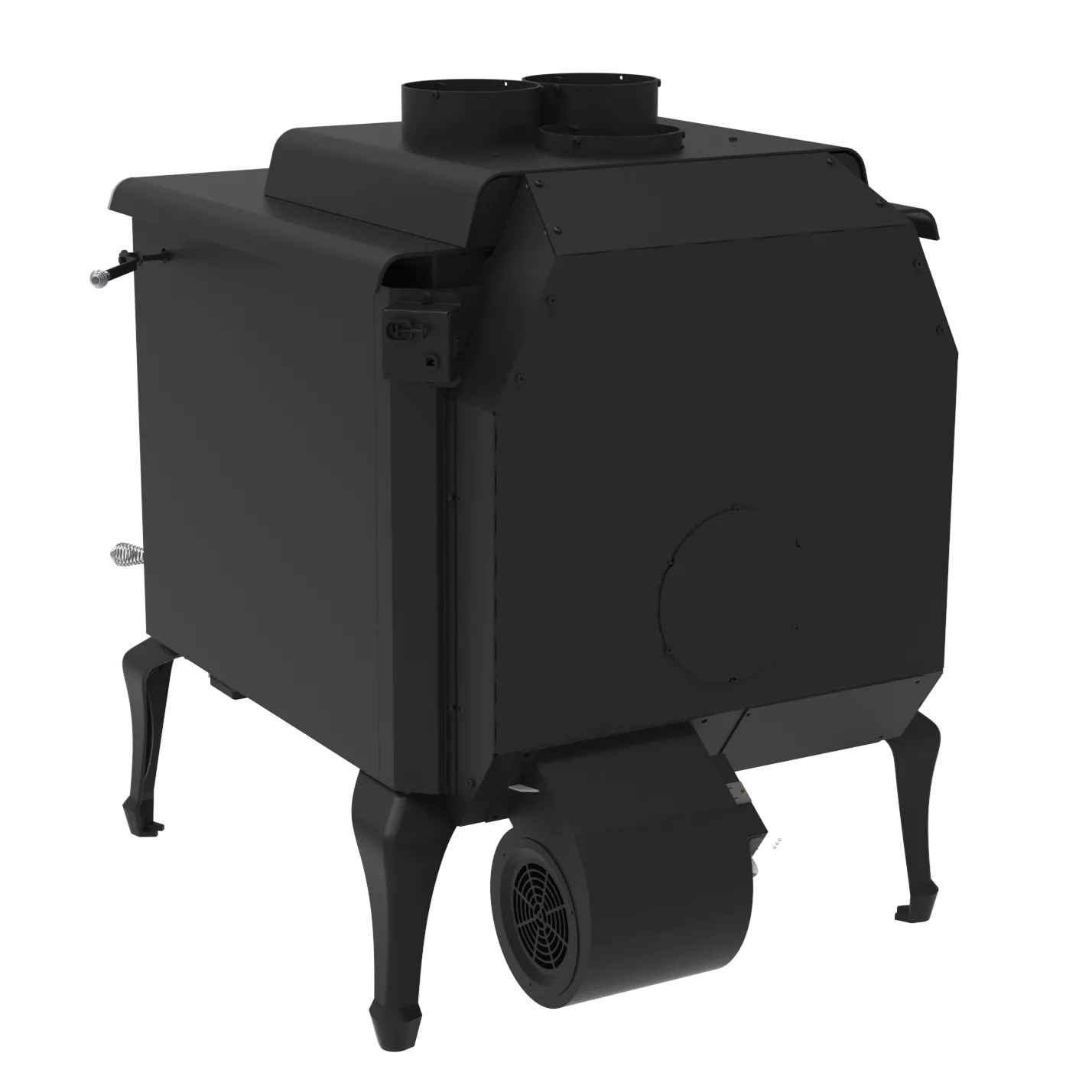

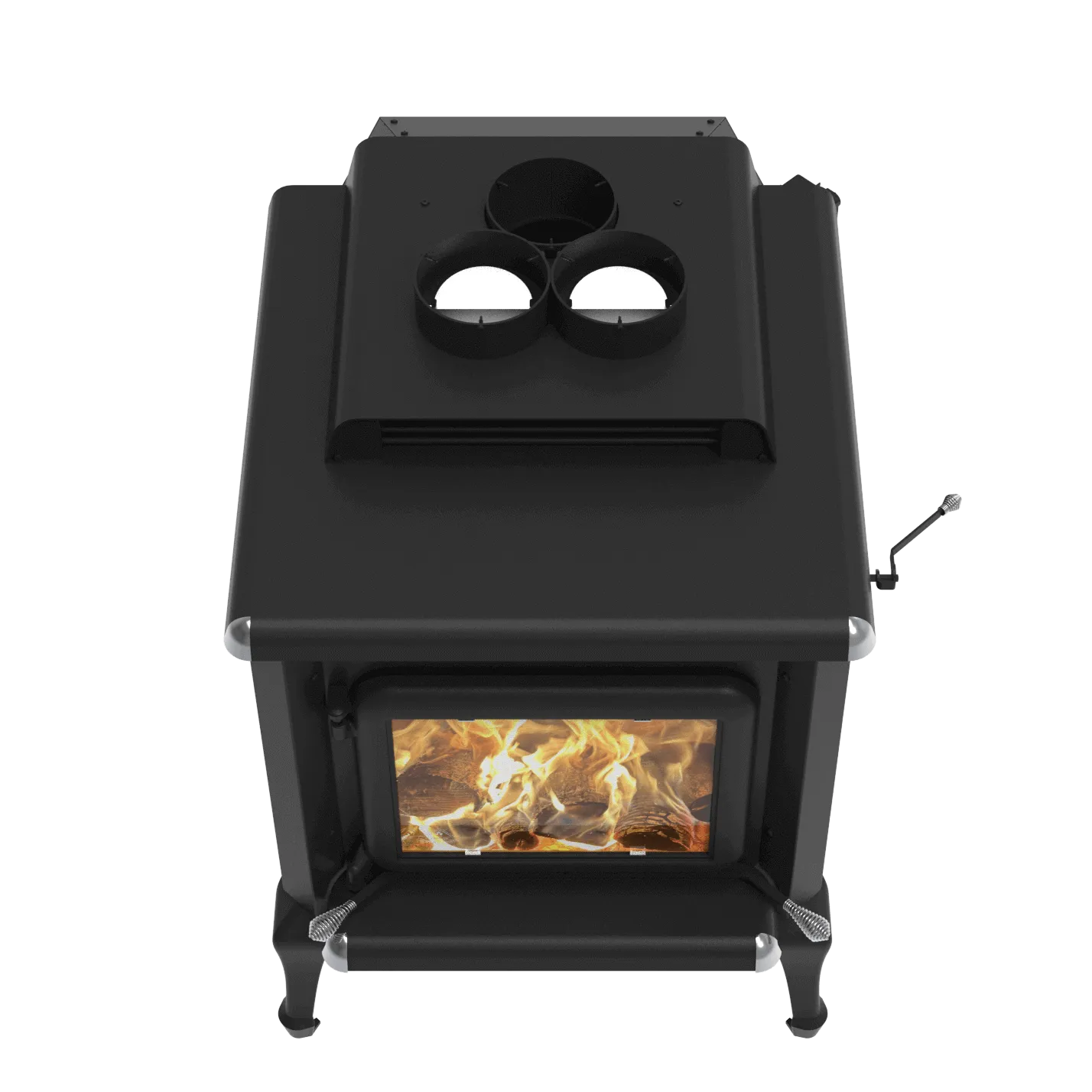

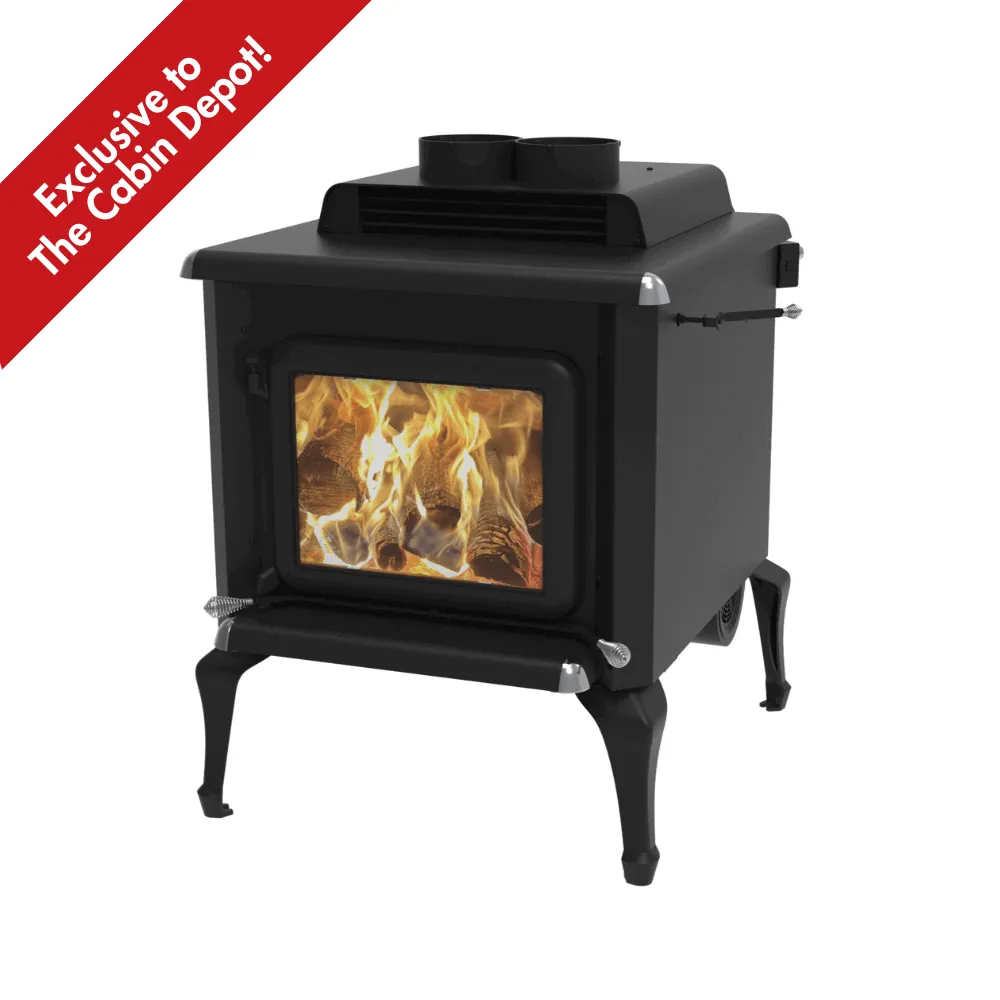

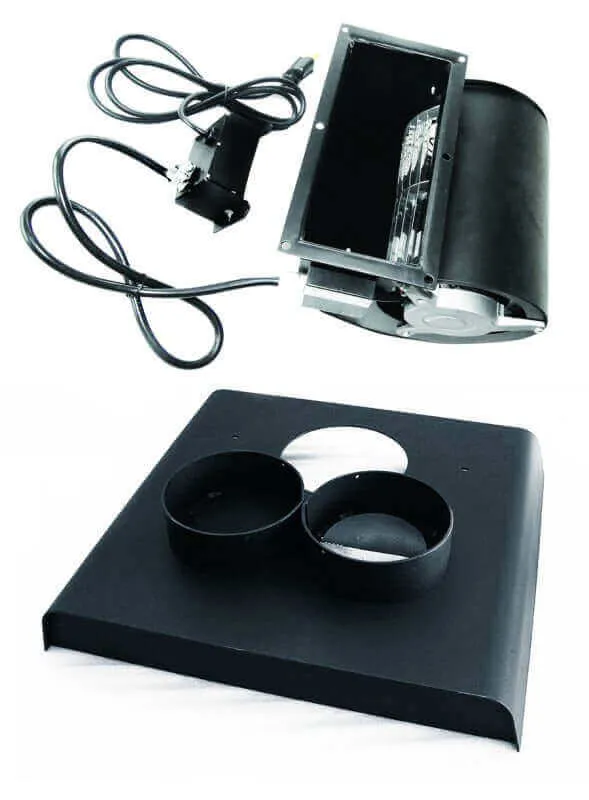

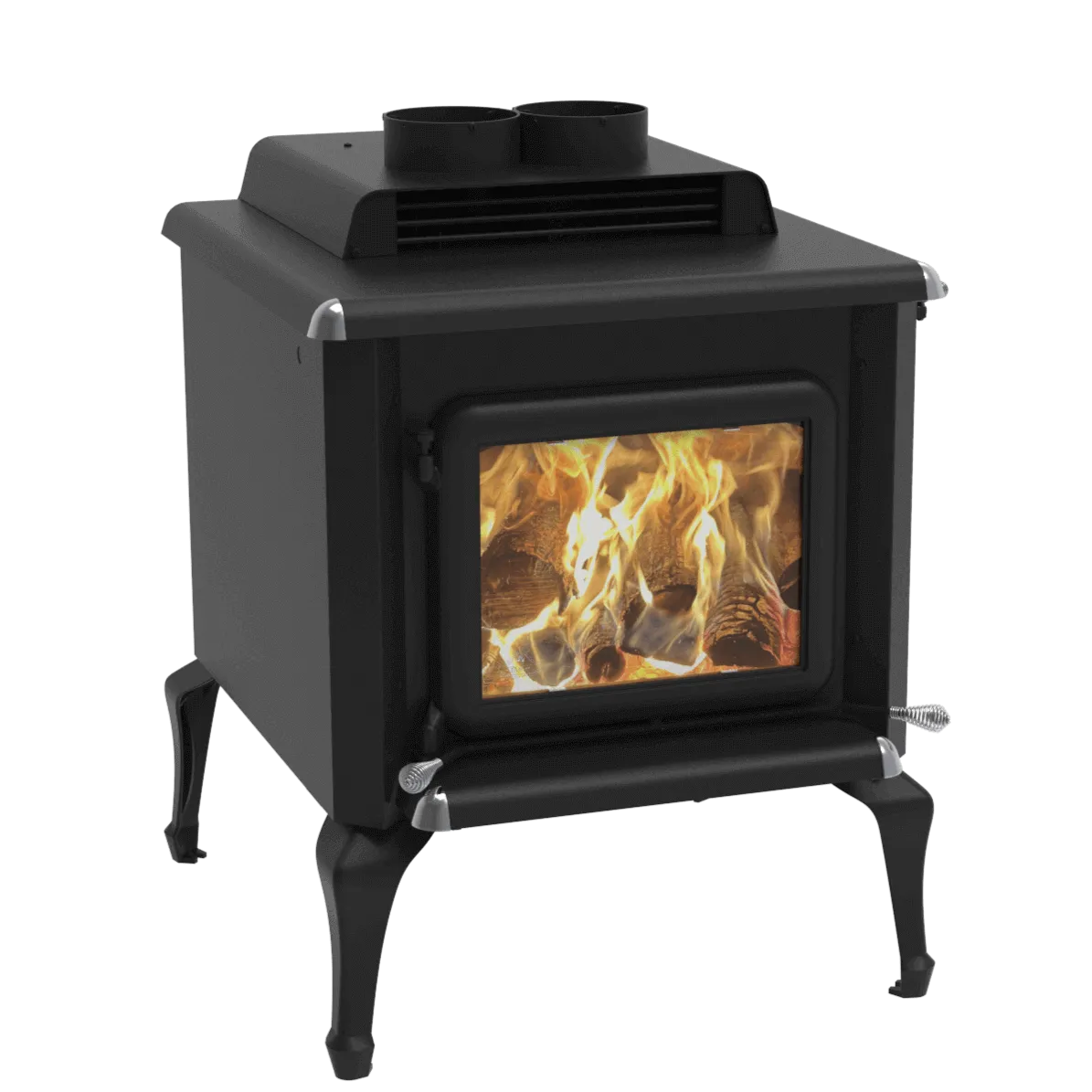

Exclusive to The Cabin Depot: The MASTER is one of the most powerful and advanced wood stoves available in North America! With a whopping 120,000 BTU heating capacity, the MASTER includes a powerful 460 CFM blower and dual 6" duct connections on top so that you can direct that hot air to anywhere in the cabin, cottage, or homestead to get warm fast!
The combustion chamber itself is 4.7 cubic feet in size, accepts wood logs up to 25" in length, and can easily heat buildings up to 3,800 SF in size.
FEATURES
- Metallic black with cast iron arched door
- High efficiency CSA B415.1-10 certified appliance
- Recommended Heating Area (sq.ft): 1200 – 3800
- 120,000 BTU/h (Dry seasoned wood)
- 4 Cast Iron Legs
- Convection and radiant heat
- Glass air-wash system
- Fibre ceramic baffle
- Firebox lined with refractory bricks for better heat distribution
- Stainless steel secondary air system improving gas combustion
- Recommended chimney: 6’’
- Optimum efficiency 78%
- Low emissions 2.4 g/h
- Log length 25’’
- Tested as per applicable standards by Intertek
OPTIONS
- What options? This baby comes loaded!
SPECIFICATIONS
- Type of fuel: Wood
- Recommended heating area: 1200 - 3800 ft²
- Combustion length: 4 to 18 hours
- Maximum output: 120,000 BTU (Dry cordwood)
-
Firebox dimensions:
- Width 20 ½"
- Height 15 ½"
- Depth 25 ¼"
- Maximum log length: 25"
-
Exteriors dimensions:
- Width 29"
- Height 37 13/16"
- Depth 37 7/16"
- Type of chimney: 2100° F. - 650° C
- Duct pipe diameter: 6"
- Recommended chimney diameter: 6"
- Minimum chimney height: 12'
-
Minimum clearances to combustibles:
- Back 10"
- Lateral & corners 20"
- Ceiling (measured from floor) 84"
- Weight: 500 lbs
- Standard test - Canada emissions: CSA B415.1-10
- Standard test - safety: ULC S627 / UL 1482
- Warranty: Limited lifetime
DOWNLOADS
- Brochure
- Owner's Manual
