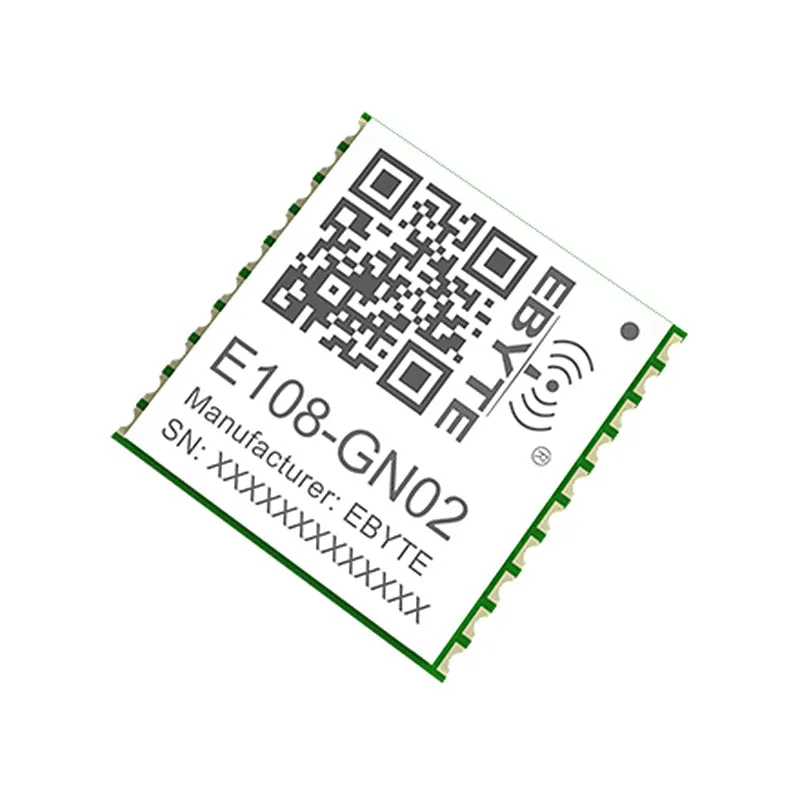

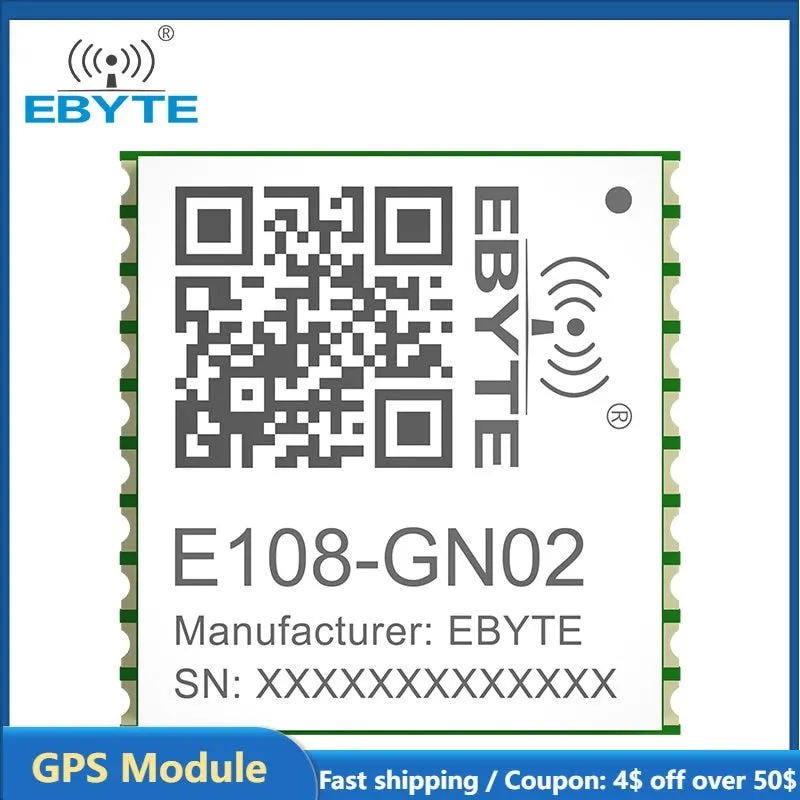

Name: Ebyte E108-GN02 GPS Module BDS GLONASS Multi-mode Positioning Tracking Module Navigation NMEA0183 High Performance GNSS Positioning
SKU: 303219

E108-GN02 is a multi-mode satellite positioning and navigation module with high performance, high integration, low power consumption and low cost, which can be used in GNSS positioning applications such as vehicle navigation, intelligent wear, UAV, etc. This versatile GNSS positioning module offers superior performance for a variety of navigation applications, with low power consumption and cost-effective integration. Ideal for vehicle navigation, intelligent wear, and UAVs.

Brand Name: EBYTE
Origin: Mainland China
Condition: New
Type: Drive IC
Model Number: E108-GN02
Supply Voltage: 2.8V-4.3V
Application: Computer
Package: SMD
Protocol: Support NMEA0183 v4.1 and earlier versions
Certification: Pending
Package Size: Half hole (SMT surface mount)

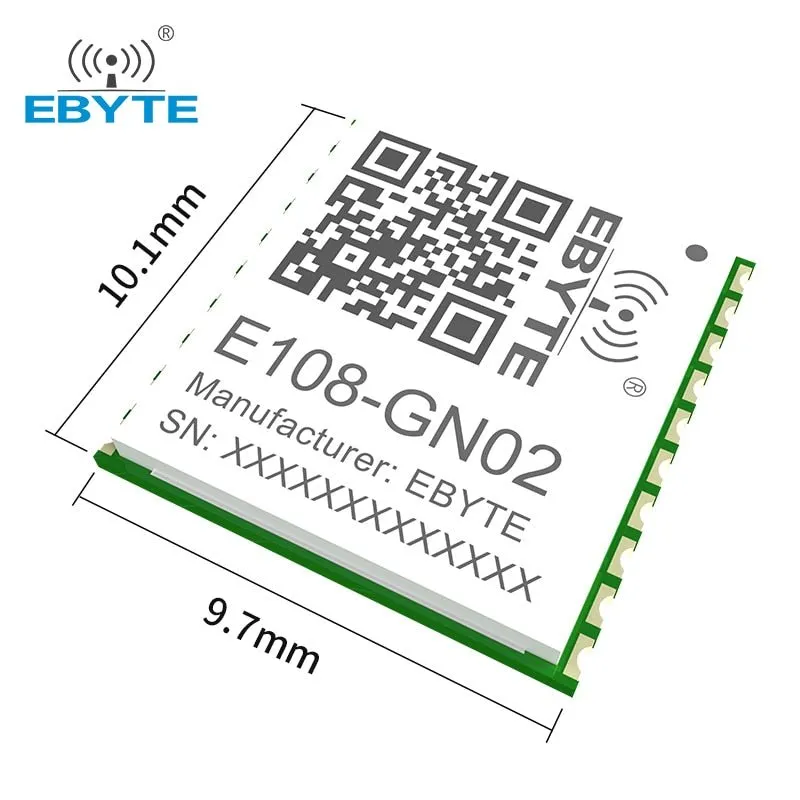

Size: 10.1*9.7*2.4mm (L*W*H)
Features: Multi-mode

Item	Description
Communication protocol	Support NMEA0183 v4.1 and earlier versions, the maximum fixed update frequency can reach 10Hz
Positioning system	Support BDS/GPS/GLONASS
Peripheral Interface	Support UART (TXD/RXD) or GPIO
Low power consumption	Support (Stop、Sleep)
Ultra low power consumption	Support
Periodic low power consumption	Support
Direct low power consumption	Support
Parameter setting software	Support
Certification	Pending
Size	10.19.72.4mm (LWH)
Package	Half hole (SMT surface mount)
Power supply	VCC	2.8V—4.3V（3.3V）
Serial port	Communication level	2.8V
	Baud (bps)	9600~921600, default 9600
	Data bit	8bit
	Stop bit	1
	Check bit	None
