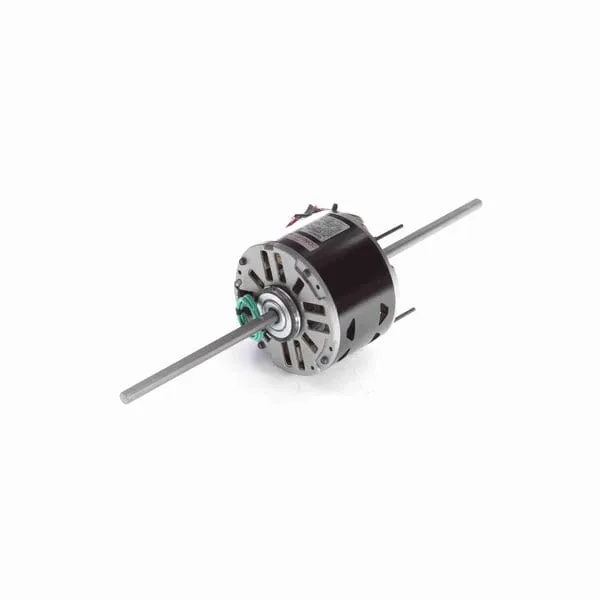

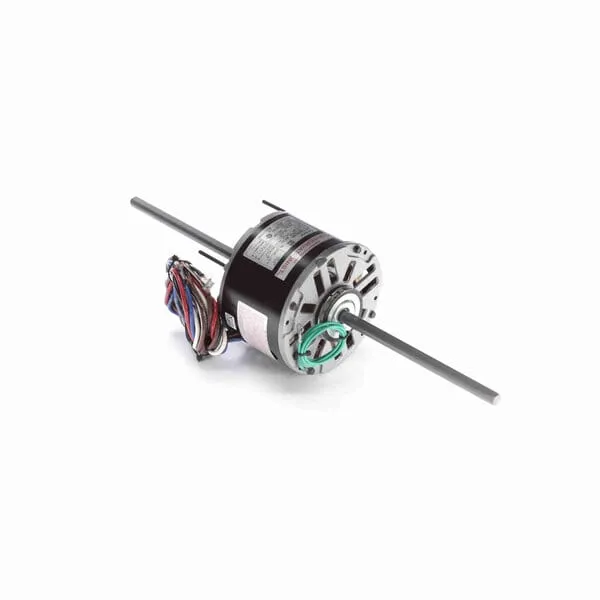

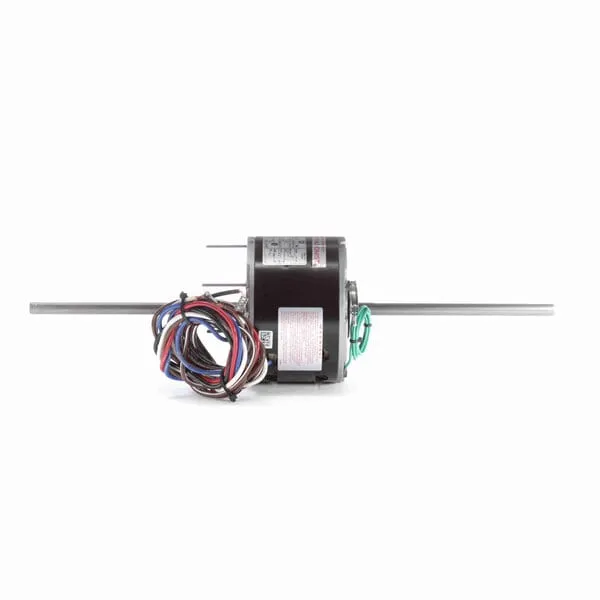

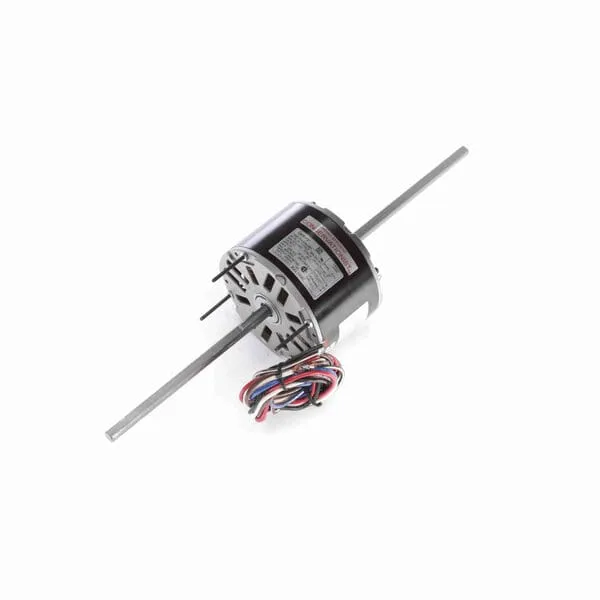

• Fan Coil - Room Air Conditioner - Blower Motor
• 5.6" Diameter - 48 Frame
• Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
• Thermally Protected
• Open Lead End and Opposite Lead End End-Frame, Semi-Enclosed Shell, Air Over
• Class A Insulation, 60°C Ambient
• Sleeve Bearing
• 1/2" Diameter Double Shaft with Flat
• 35" Leads
• Extended Studs Lead End, Resilient Ring Opposite Lead End, Resilient Mounting Accessories Supplied with Motor
